Twill Weave Stainless Steel Wire Mesh Corrosion And High Temperature Resistance
Twill Weave Wire Mesh:
Twill weave stainless steel wire mesh has the processing that each weft wire passes over and under two warp wires and vice versa, forming a beautiful appearance.
Twill weave stainless steel wire mesh has corrosion and high temperature resistance. It can be made into filter or sieve element, and plays an important role in chemical, oil, mining, food processing industries.
Materials: SS304, SS304L, SS316, SS316L
| AISI | Chemical Composition of Several Stainless Steel Wires (%) |
| C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | Max.0.08 | Max.1.00 | Max.2.00 | Max.0.045 | Max.0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | Max.0.03 | Max.1.00 | Max.2.00 | Max.0.045 | Max.0.030 | 9.00~13.00 | 18.00~20.00 | - |
| 316 | Max.0.08 | Max.1.00 | Max.2.00 | Max.0.045 | Max.0.030 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| 316L | Max.0.03 | Max.1.00 | Max.2.00 | Max.0.045 | Max.0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00
|
304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.
304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.
316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.
316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.
Weaving Type: Twill weave
Characteristics:
Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance.
Applications:

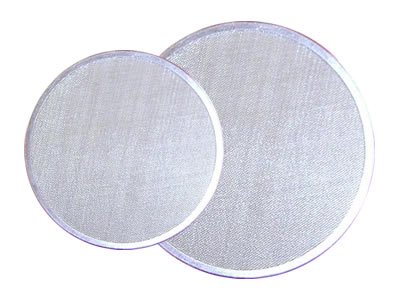

Serve as filter or sieve;
Play a role in coal, glass, petroleum, textile, metallurgy industries;
Made into decoration mesh.
Specifications:
| MESH Count | Diameter of Wire | Width of Opening | Open Area | Weight |
| % per | Pounds |
| per Inch | Inches | mm | Inches | mm | 100 Sq. Ft. | per 100Sq.Ft |
| 12 x 12 | 0.032 | 0.81 | 0.051 | 1.3 | 37.9 | 78.8 |
| 14 x 14 | 0.028 | 0.71 | 0.043 | 1.1 | 37 | 70.4 |
| 16 x 16 | 0.023 | 0.58 | 0.04 | 1 | 39.9 | 54.3 |
| 20 x 20 | 0.021 | 0.53 | 0.029 | 0.74 | 33.6 | 56.6 |
| 30 x 30 | 0.015 | 0.38 | 0.018 | 0.47 | 30.3 | 43.3 |
| 35 x 35 | 0.014 | 0.36 | 0.015 | 0.37 | 26 | 44 |
| 40 x 40 | 0.012 | 0.31 | 0.013 | 0.33 | 27 | 36.9 |
| 50 x 50 | 0.011 | 0.28 | 0.009 | 0.229 | 20.3 | 38.8 |
| 50 x 50 | 0.0055 | 0.14 | 0.015 | 0.37 | 52.6 | 9.7 |
| 60 x 60 | 0.011 | 0.28 | 0.0057 | 0.144 | 11.6 | 46.6 |
| 60 x 60 | 0.0045 | 0.114 | 0.012 | 0.31 | 53.3 | 7.8 |
| 80 x 80 | 0.007 | 0.178 | 0.0055 | 0.14 | 19.4 | 25.1 |
| 100 x 100 | 0.005 | 0.127 | 0.005 | 0.127 | 25 | 16 |
| 120 x 120 | 0.0042 | 0.107 | 0.0041 | 0.105 | 24.6 | 13.6 |
| 120 x 120 | 0.004 | 0.102 | 0.0043 | 0.11 | 27 | 12.3 |
| 150 x 150 | 0.003 | 0.076 | 0.0037 | 0.093 | 30.3 | 8.7 |
| 180 x 180 | 0.0025 | 0.064 | 0.0031 | 0.078 | 30.3 | 7.2 |
| 200 x 200 | 0.0025 | 0.064 | 0.0025 | 0.064 | 25 | 8 |
| 200 x 200 | 0.0023 | 0.058 | 0.0027 | 0.069 | 29.2 | 6.8 |
| 270 x 270 | 0.0016 | 0.041 | 0.0021 | 0.053 | 32.3 | 4.4 |
| 300 x 300 | 0.0015 | 0.038 | 0.0018 | 0.047 | 30.3 | 4.3 |
| 325 x 325 | 0.0014 | 0.036 | 0.0017 | 0.043 | 29.7 | 4.1 |
| 400 x 400 | 0.001 | 0.025 | 0.0015 | 0.038 | 36 | 2.6 |
Table 1: Chemical Composition of Several Stainless Steel Wires (%) | Materials | C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | = 0.08 | = 1.00 | = 2.00 | = 0.045 | = 0.030 | 8.0–10.50 | 18.00–20.00 | - |
| 316 | = 0.045 | = 1.00 | = 2.00 | = 0.045 | = 0.030 | 10.00–14.00 | 10.00–18.00 | 2.00–3.00 |
| 316L | = 0.030 | = 1.00 | = 2.00 | = 0.045 | = 0.030 | 12.00–15.00 | 16.00–18.00 | 2.00–3.00 |
| 321 | ≤ 0.07 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00–11.00 | 17.00–19.00 | - |
| 904L | ≤ 0.02 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.035 | 23.00–28.00 | 19.00–23.00 | 4.00–5.00 |
Packing: Other specifications according to your requirements.
Type of woven
Our product range
Stainless steel woven wire mesh packing
In order to make an offer,please provide below specification of wire mesh
Material
Mesh size or aperture size
Wire diameter
Length per roll
Width per roll
About us
We are is a professional wire mesh company.
We are located in Anping County, Hebei Province,China.
Our product range
- stainless steel woven wire mesh
- welded wire mesh
- crimped wire mesh
- hexagonal wire mesh
- brass wire mesh
- wire belt
- wire mesh filter
We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.
We welcome your enquiry!
